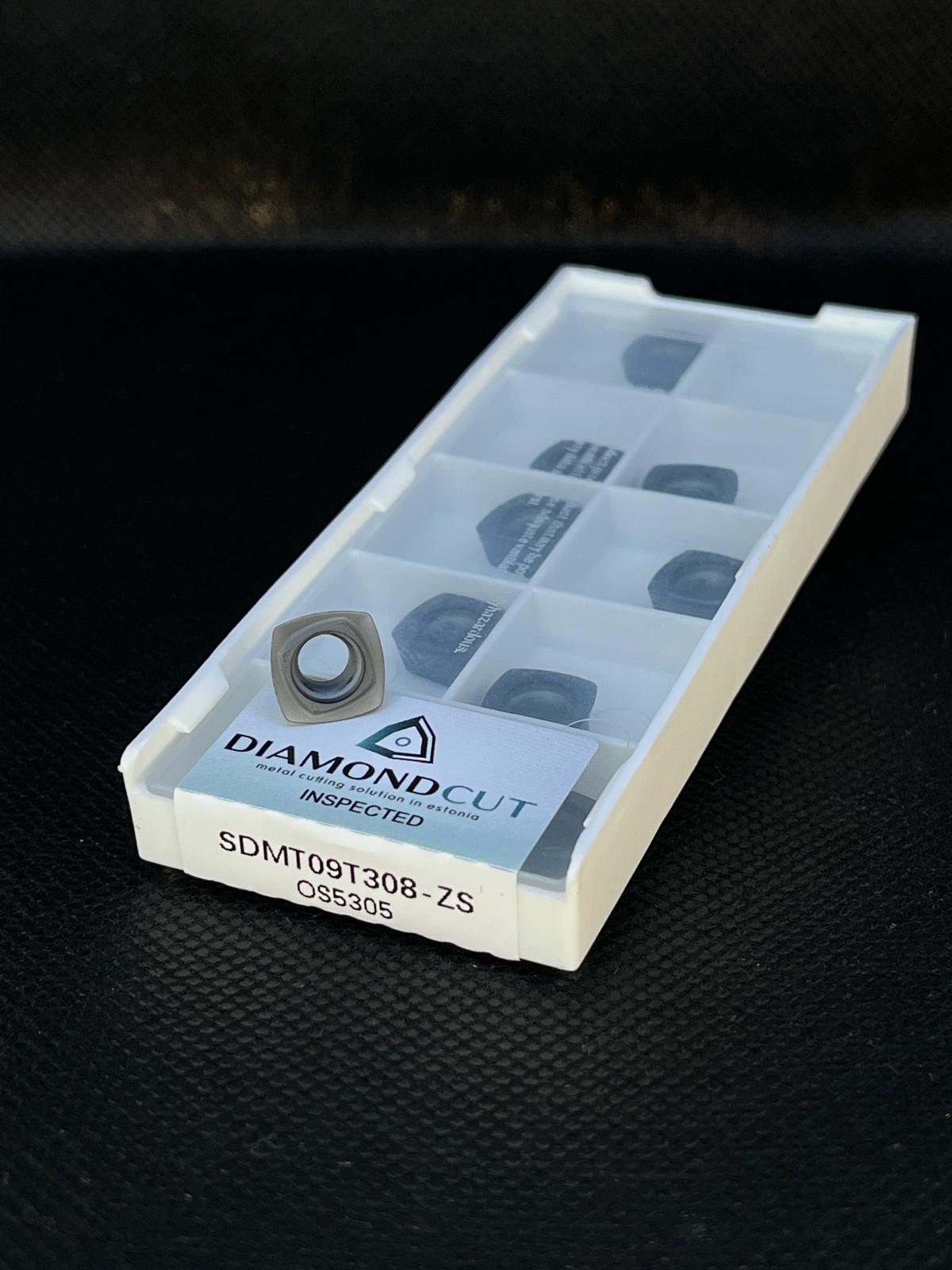

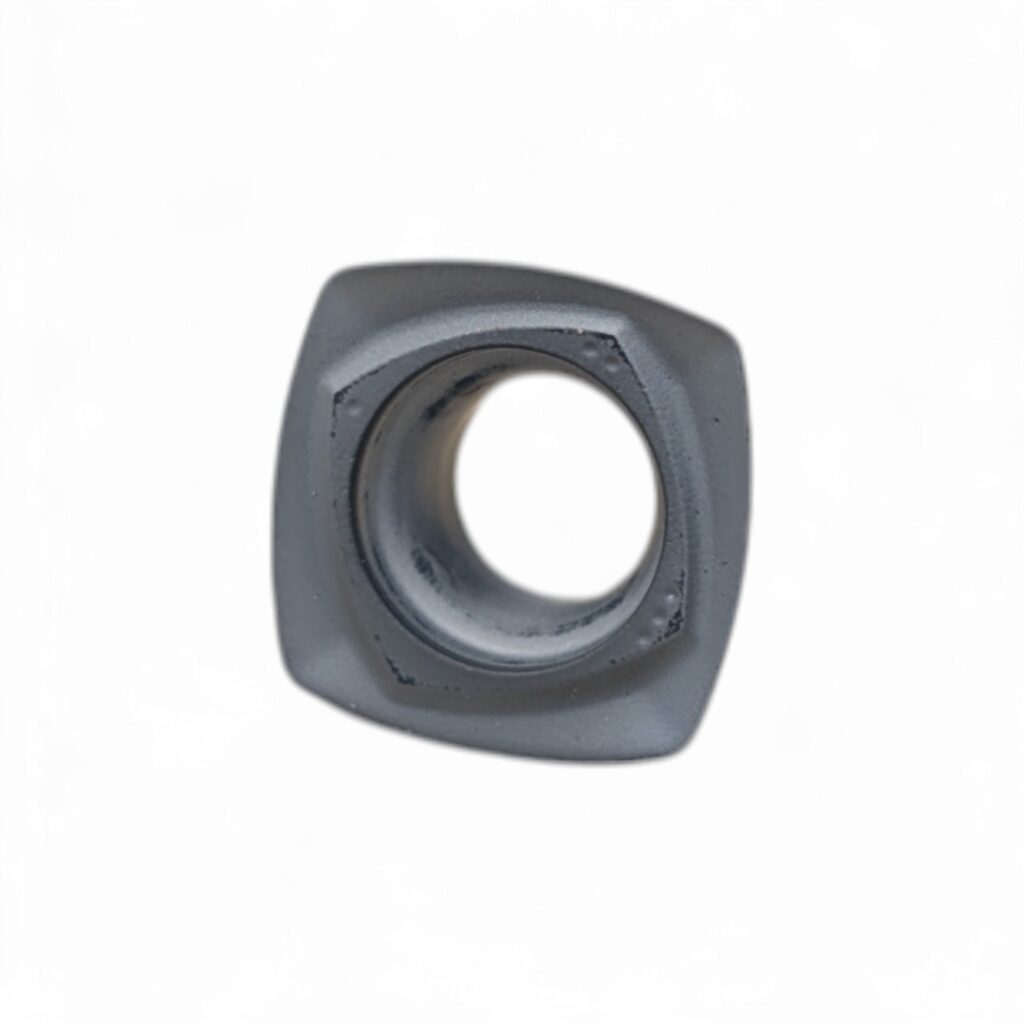

SDMT09T308-ZS OS5305 Milling Inserts

Description

The SDMT09T308-ZS OS5305 Milling Inserts are premium-grade carbide inserts developed for face milling, shoulder milling, and universal machining tasks. Engineered with the OS5305 grade and advanced CVD coating, these inserts offer outstanding wear resistance, high thermal stability, and long tool life, even under demanding cutting conditions. The fine-grain carbide substrate provides a strong foundation, ensuring toughness and reducing the risk of insert breakage during heavy-duty operations.

With the ZS chipbreaker geometry, these milling inserts ensure smooth cutting performance and efficient chip evacuation. This geometry helps to minimize vibration, improve surface finish, and maintain stable cutting forces. The design makes the SDMT09T308-ZS OS5305 Milling Inserts ideal for both roughing and semi-finishing operations across multiple material groups. They perform exceptionally well in steels (ISO P20–P40), stainless steels (ISO M20–M30), and cast irons (ISO K20–K30), covering a wide range of industrial applications.

Code Breakdown

• SDMT – Square insert, single-sided, 11° clearance

• 09 – Cutting edge length

• T3 – Insert thickness series

• 08 – Corner radius (0.8 mm)

• ZS – Universal chipbreaker for stable chip control

• OS5305 – CVD-coated carbide grade for versatile milling

Key Features

• High-quality carbide substrate with increased toughness

• OS5305 CVD coating for extended tool life and reduced wear

• ZS geometry for smooth cutting and efficient chip evacuation

• Excellent balance of toughness, wear resistance, and heat resistance

• Suitable for steels, stainless steels, and cast irons

Equivalent Inserts (Other Brands)

• Sandvik: SDMT09T308-MM 1030 (Sandvik official site)

• Seco: SDMT09T308-ME05 F40M

• Kennametal: SDMT09T308-MP KCPK30

• Iscar: SDMT09T308-IC928

Recommended Cutting Data

• Cutting speed for steels: 180–280 m/min

• Cutting speed for stainless steels: 120–200 m/min

• Cutting speed for cast irons: 150–220 m/min

• Depth of cut: up to 3.0 mm

The SDMT09T308-ZS OS5305 Milling Inserts are a reliable choice for manufacturers seeking consistency, efficiency, and productivity in metal cutting. For more carbide milling inserts and turning solutions, visit our Diamond Cut store.
