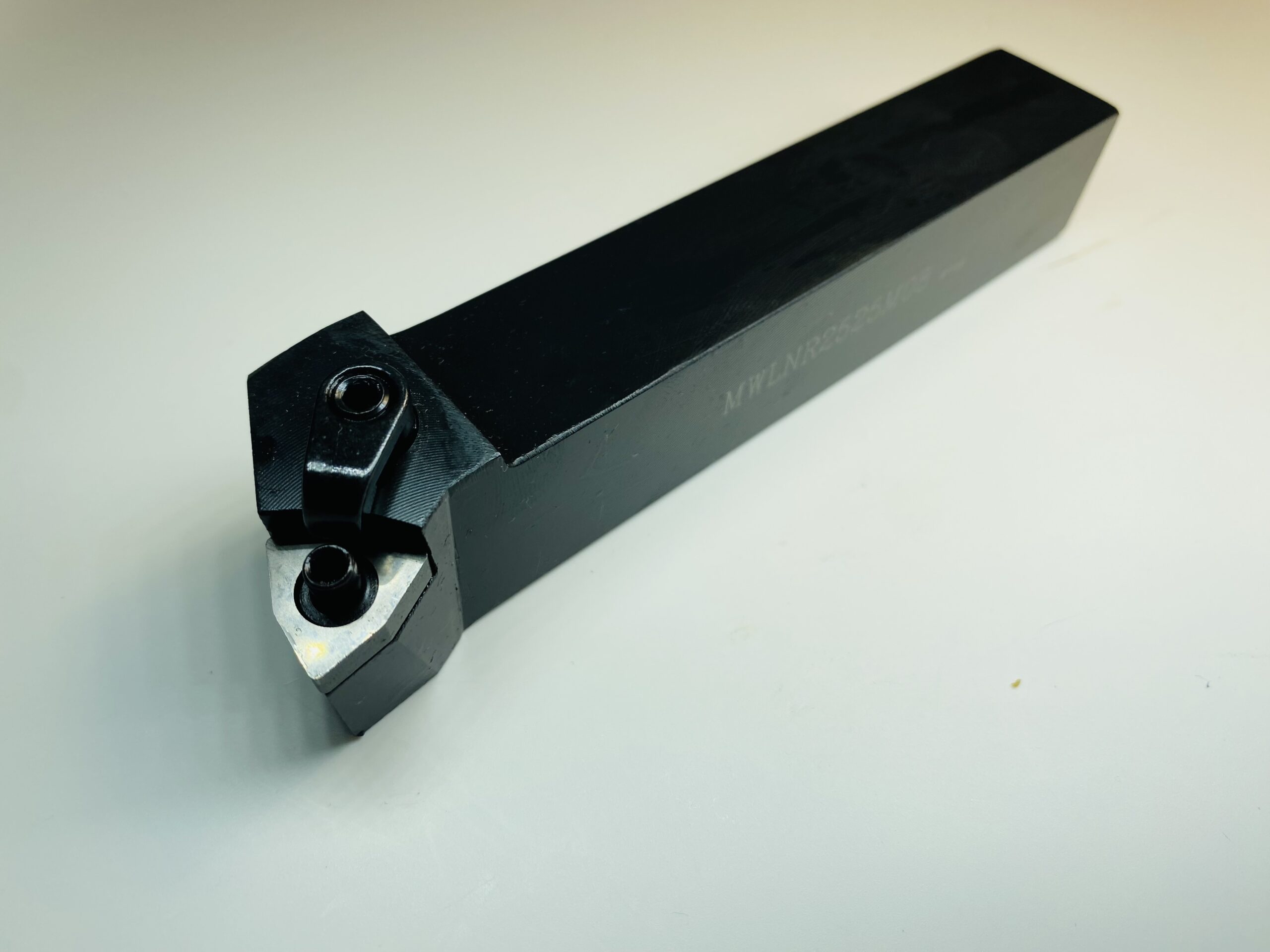

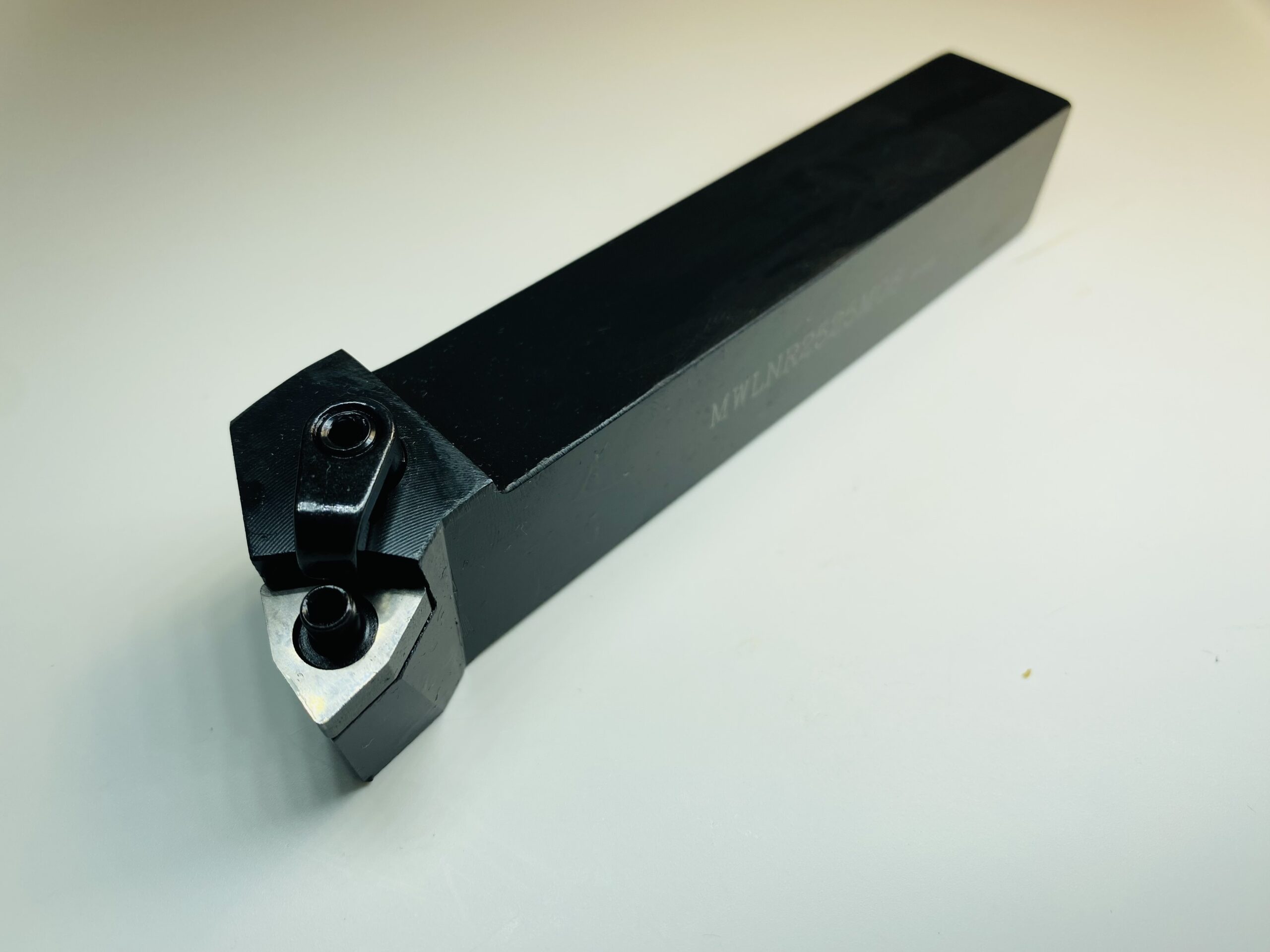

MWLNR2020M08 External Turning Tool Holder
SALEDescription
The MWLNR2020M08 is a right-hand external turning tool holder for ISO WNMG08 negative trigon inserts, commonly WNMG0804 sizes. With a 20×20 mm square shank, it is suitable for CNC lathe turrets and conventional lathe toolposts where a rigid general-purpose outside turning holder is required. The holder is used for OD turning, facing toward shoulders and medium profiling operations on steels, stainless steels, cast iron and non-ferrous materials when fitted with the correct WNMG insert grade and chipbreaker. Its 95° approach angle gives good versatility for general workshop and production machining, while the multi-lock style clamping with top clamp and shim support helps keep the insert seated securely during medium and interrupted cuts. WNMG inserts provide multiple usable cutting edges, making this holder a cost-effective solution for roughing and semi-finishing. Cutting performance depends on the selected insert coating, grade, chipbreaker, nose radius and workpiece condition. The cutting data below are safe recommended starting ranges for typical carbide WNMG08 inserts.
Recommended Cutting Data
| Material | Operation | Vc | ap | Feed |
|---|---|---|---|---|
| Steel | General turning / semi-roughing | 140-220 m/min | 0.5-3.0 mm | 0.12-0.35 mm/rev |
| Stainless steel | Medium turning | 80-160 m/min | 0.3-2.5 mm | 0.10-0.28 mm/rev |
| Cast iron | Roughing / finishing | 120-220 m/min | 0.5-3.5 mm | 0.12-0.35 mm/rev |
| Non-ferrous metals | General turning with suitable insert | 200-500 m/min | 0.3-3.0 mm | 0.10-0.30 mm/rev |
Compatible Tool Holders
- Designed for ISO WNMG08 / WNMG0804 negative trigon turning inserts.
- Compatible insert nose radius and chipbreaker should be selected according to the workpiece material, finish requirement and depth of cut.
- Comparable external WNMG holder families include MWLNR, MWLNL, PWLNR, PWLNL, DWLNR and DWLNL types, depending on hand, shank size and approach angle.
- Use right-hand machine setup for MWLNR applications.
Key Features
- ISO-style MWLNR2020M08 external turning holder.
- 20×20 mm square shank for stable clamping in lathe toolposts and CNC turrets.
- Right-hand cutting direction with 95° approach angle.
- Accepts strong negative WNMG08 / WNMG0804 trigon inserts.
- Multi-lock style top clamping with shim support for secure insert location.
- Suitable for roughing, semi-finishing, facing and general OD turning.
- Good price-to-quality solution for workshop and production machining.
Suitable Materials
- Carbon steels and alloy steels with suitable WNMG insert grade.
- Stainless steels using an appropriate stainless-grade insert and coolant strategy.
- Cast iron and ductile iron.
- Non-ferrous metals when used with a sharp or polished WNMG insert geometry.
Equivalent or Comparable Inserts
This holder is intended for ISO WNMG08 / WNMG0804 type inserts. Comparable insert families are available from tooling brands such as Sandvik Coromant, Seco, Kennametal, Iscar, TaeguTec, Korloy and Mitsubishi, provided the ISO insert size and clamping style match. Grade, coating, chipbreaker and nose radius must be chosen for the specific material and operation.
