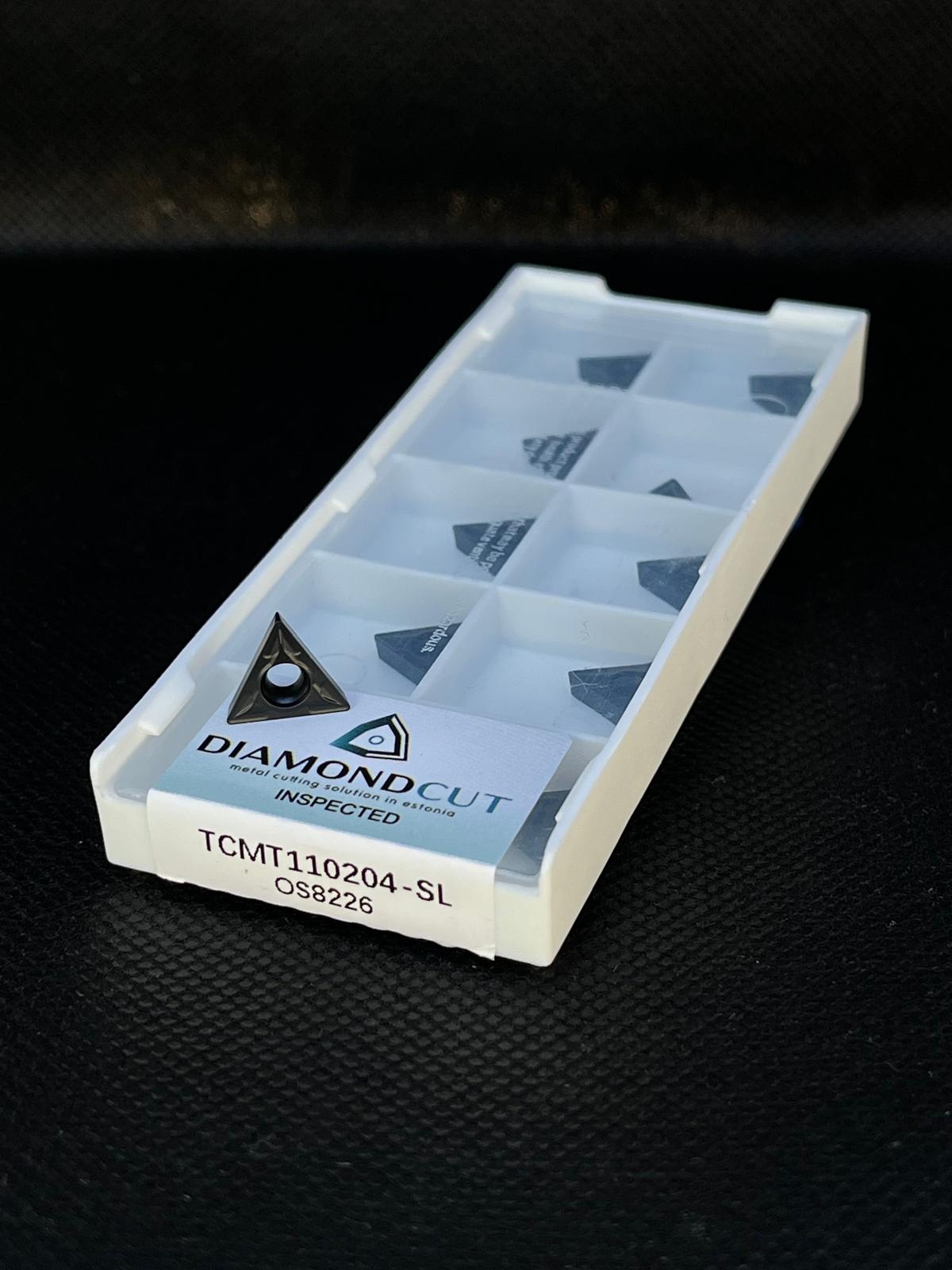

TCMT 110204-SL OS8226 Carbide Turning Insert

The TCMT 110204-SL OS8226 is a precision carbide turning insert designed for finishing and semi-finishing operations. With its 60° triangular shape (T-type) and positive geometry, it offers low cutting forces, excellent surface finish, and stable chip control, making it ideal for light-duty turning.

The OS8226 grade features a fine-grained carbide substrate with a PVD coating, providing excellent wear resistance and heat stability. This makes the insert particularly well-suited for machining steels, stainless steels, and non-ferrous metals under stable conditions. The SL chipbreaker is optimized for light to medium cutting, ensuring efficient chip evacuation and minimal vibration.

The 110204 designation indicates a 11 mm inscribed circle, 2.38 mm thickness, and a 0.4 mm nose radius, providing accuracy for detailed turning and profiling. Commonly used in precision engineering, automotive, and aerospace industries, this insert delivers consistent tool life and superior surface quality.

Code Breakdown:

• T – Insert shape: triangular (60°)

• C – Relief angle: 7° positive

• M – Tolerance class: medium

• T – Single-sided insert with fixing hole

• 110204 – 11 mm IC, 2.38 mm thickness, 0.4 mm nose radius

• SL – Chipbreaker for light to medium cutting

• OS8226 – PVD-coated grade for steels, stainless steels, and non-ferrous

Key Features:

• TCMT 60° triangular turning insert

• Grade OS8226 with PVD coating

• Optimized for steels, stainless steels, and non-ferrous

• Nose radius: 0.4 mm for fine finishing

• SL chipbreaker for light/medium cutting

• Excellent surface finish and chip evacuation

• Positive geometry reduces cutting forces

Equivalent Inserts:

• Sandvik: TCMT 110204-PF 4325

• Iscar: TCMT 110204-F3 IC907

• Mitsubishi: TCMT110204-MS VP15TF

Compatible Tool Holders:

• STGCR / STGCL

• MTGNR / MTGNL

• Other holders for 60° positive inserts
