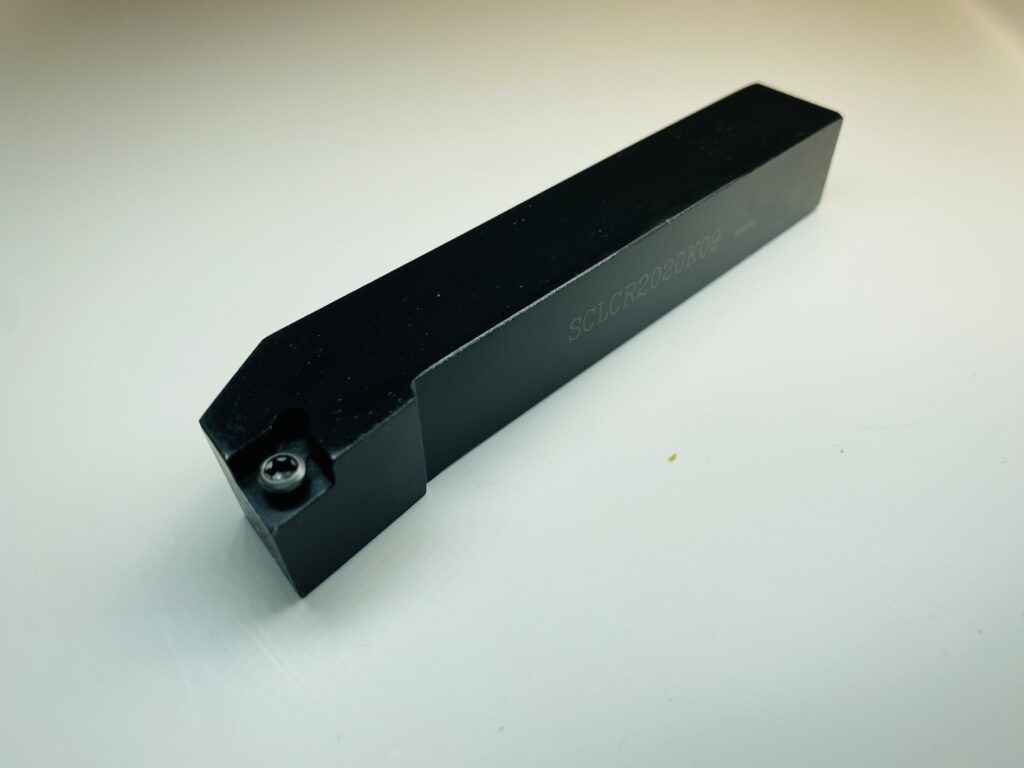

SCLCR2020K09 External Turning Tool Holder 20×20 for CCMT09
SALEDescription
The SCLCR2020K09 is a right-hand external turning tool holder for ISO CCMT09 / CCMT 09T3 positive carbide inserts. With a 20×20 mm square shank and K-length body, it is suitable for CNC lathes and conventional lathe toolposts where reliable insert clamping and stable cutting are required. The SCLCR design gives a 95° approach angle, making the holder practical for external turning, facing, shoulder turning and light profiling operations. When matched with the correct CCMT insert grade, chipbreaker and nose radius, it can be used on carbon steel, alloy steel, stainless steel, cast iron and non-ferrous materials. The screw-clamp insert fixing supports repeatable indexing and secure insert location, helping maintain consistent surface finish during daily workshop machining. This holder is a good price-to-quality option for general turning from light roughing to finishing, within the limits of the selected insert geometry and machine rigidity. Cutting values below are recommended starting ranges and should be adjusted according to insert grade, workpiece material, coolant use, overhang and machine condition.
Recommended Cutting Data
| Material | Operation | Vc | ap | Feed |
|---|---|---|---|---|
| Steel | General turning / facing | 120–220 m/min | 0.3–3.0 mm | 0.08–0.25 mm/rev |
| Stainless steel | Light to medium turning | 80–160 m/min | 0.2–2.0 mm | 0.06–0.20 mm/rev |
| Cast iron | External turning | 100–200 m/min | 0.5–3.0 mm | 0.10–0.30 mm/rev |
| Aluminium and non-ferrous alloys | Finishing / medium turning | 200–500 m/min | 0.2–3.0 mm | 0.08–0.30 mm/rev |
Compatible Tool Holders
- This product is an ISO SCLCR2020K09 right-hand external turning holder.
- Designed for CCMT09 / CCMT 09T3 positive turning inserts.
- Compatible insert examples include CCMT 09T304, CCMT 09T308 and related CCMT09 geometries.
- Comparable holder family: SCLCR external turning holders with matching shank size and CCMT09 insert pocket.
Key Features
- ISO SCLCR2020K09 right-hand external turning tool holder.
- 20×20 mm square shank for stable clamping in lathe turrets and toolposts.
- Accepts CCMT09 positive carbide turning inserts.
- 95° approach angle for turning, facing and shoulder machining.
- Screw-clamp system for secure insert retention and repeatable indexing.
- Good price-to-quality solution for everyday CNC and manual lathe work.
Suitable Materials
- Carbon steel and alloy steel with suitable CCMT insert grade.
- Stainless steel using the correct chipbreaker and coolant strategy.
- Cast iron and ductile iron.
- Aluminium, brass, bronze and other non-ferrous alloys with sharp polished inserts.
Equivalent or Comparable Inserts
Use ISO CCMT09 / CCMT 09T3 style inserts from suitable carbide grades. Comparable insert families are available from brands such as Sandvik, Seco, Iscar, Korloy, Taegutec, Mitsubishi and others when the ISO insert size and geometry match. Always verify nose radius, chipbreaker and grade before machining.
