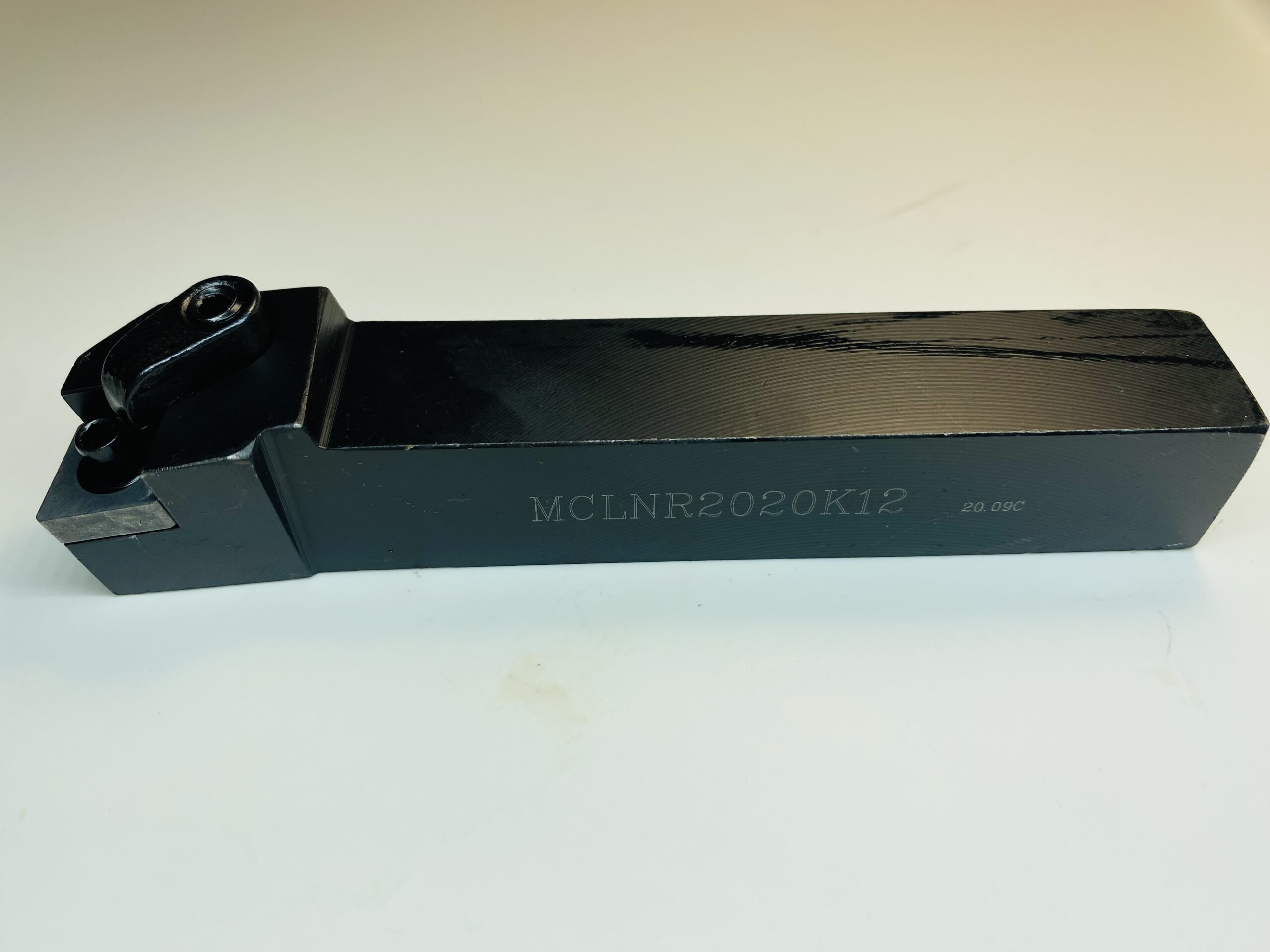

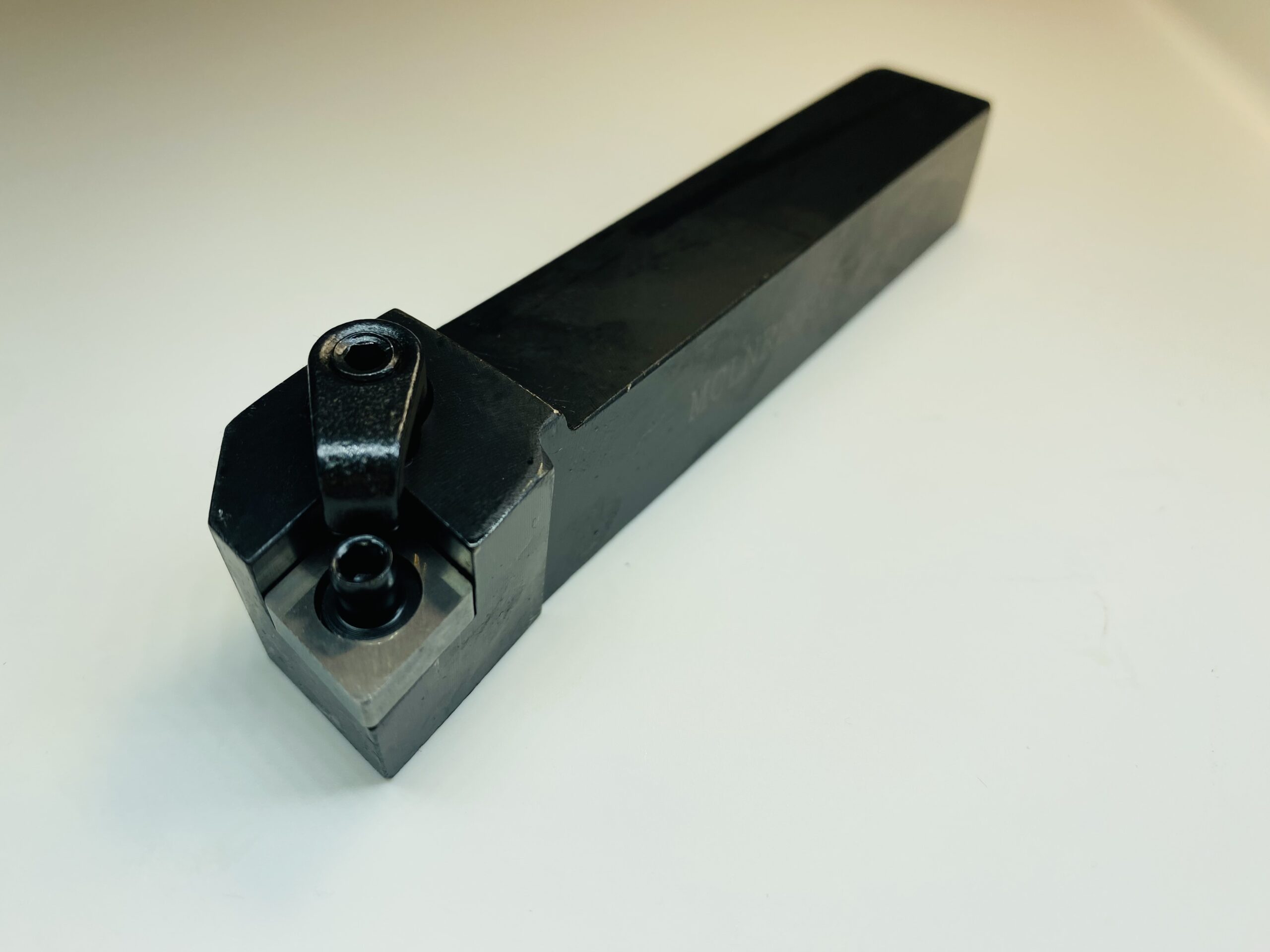

MCLNR2020K12 External Turning Tool Holder for CNMG1204 Inserts
SALEDescription
The MCLNR2020K12 is a right-hand external turning tool holder for ISO CNMG1204 negative carbide inserts. It is designed for external turning, facing and general profiling on CNC lathes and conventional turning machines where rigidity and secure insert clamping are important. The 20×20 mm square shank provides stable support in standard tool posts and turrets, while the MCLNR multi-lock style clamping system uses top clamping with insert seating support to help keep the CNMG insert firmly positioned during medium to heavy cuts. The holder uses 80° rhombic negative inserts, commonly selected for strong cutting edges, reliable chip control and economical use of multiple cutting edges. With a 95° approach angle, it is suitable for machining shoulders, straight turning and facing operations in steel, stainless steel, cast iron and general engineering materials, depending on the selected insert grade and chipbreaker. The cutting data below are recommended starting ranges for suitable CNMG1204 carbide inserts and should be adjusted to machine rigidity, coolant, insert grade and workpiece condition.
Recommended Cutting Data
| Material | Operation | Vc | ap | Feed |
|---|---|---|---|---|
| Steel | Medium turning / roughing | 120–220 m/min | 1.0–4.0 mm | 0.15–0.35 mm/rev |
| Stainless steel | General external turning | 80–160 m/min | 0.8–3.0 mm | 0.12–0.28 mm/rev |
| Cast iron | Roughing / medium turning | 100–220 m/min | 1.0–4.0 mm | 0.15–0.35 mm/rev |
| Non-ferrous alloys | General turning with suitable insert | 180–350 m/min | 0.5–3.0 mm | 0.10–0.30 mm/rev |
Compatible Tool Holders
- This product is the MCLNR2020K12 right-hand external turning holder.
- Designed for ISO CNMG1204 inserts, including CNMG120404, CNMG120408 and CNMG120412.
- Compatible with 80° negative rhombic CNMG 12 size turning inserts with 4.76 mm thickness.
- Comparable holder family: MCLNR external turning holders for CNMG inserts.
- Left-hand equivalent holder style is typically MCLNL, depending on cutting direction and machine setup.
Key Features
- ISO-style MCLNR2020K12 external turning tool holder.
- Right-hand design for common CNC lathe turning and facing operations.
- 20×20 mm square shank for rigid clamping in tool posts and turrets.
- Accepts CNMG1204 negative carbide turning inserts.
- 95° approach angle suitable for external turning, facing and shoulder work.
- Secure multi-lock clamping arrangement for stable insert seating.
- Good price-to-quality choice for roughing and medium machining.
Suitable Materials
- Carbon steel and alloy steel
- Stainless steel
- Cast iron
- Non-ferrous alloys with suitable CNMG insert geometry
- General engineering materials according to insert grade and chipbreaker
Equivalent or Comparable Inserts
Use ISO CNMG1204 inserts such as CNMG120404, CNMG120408 and CNMG120412. Comparable CNMG 12 size inserts are available from major tooling brands; suitability depends on the exact carbide grade, coating, chipbreaker and nose radius selected.
