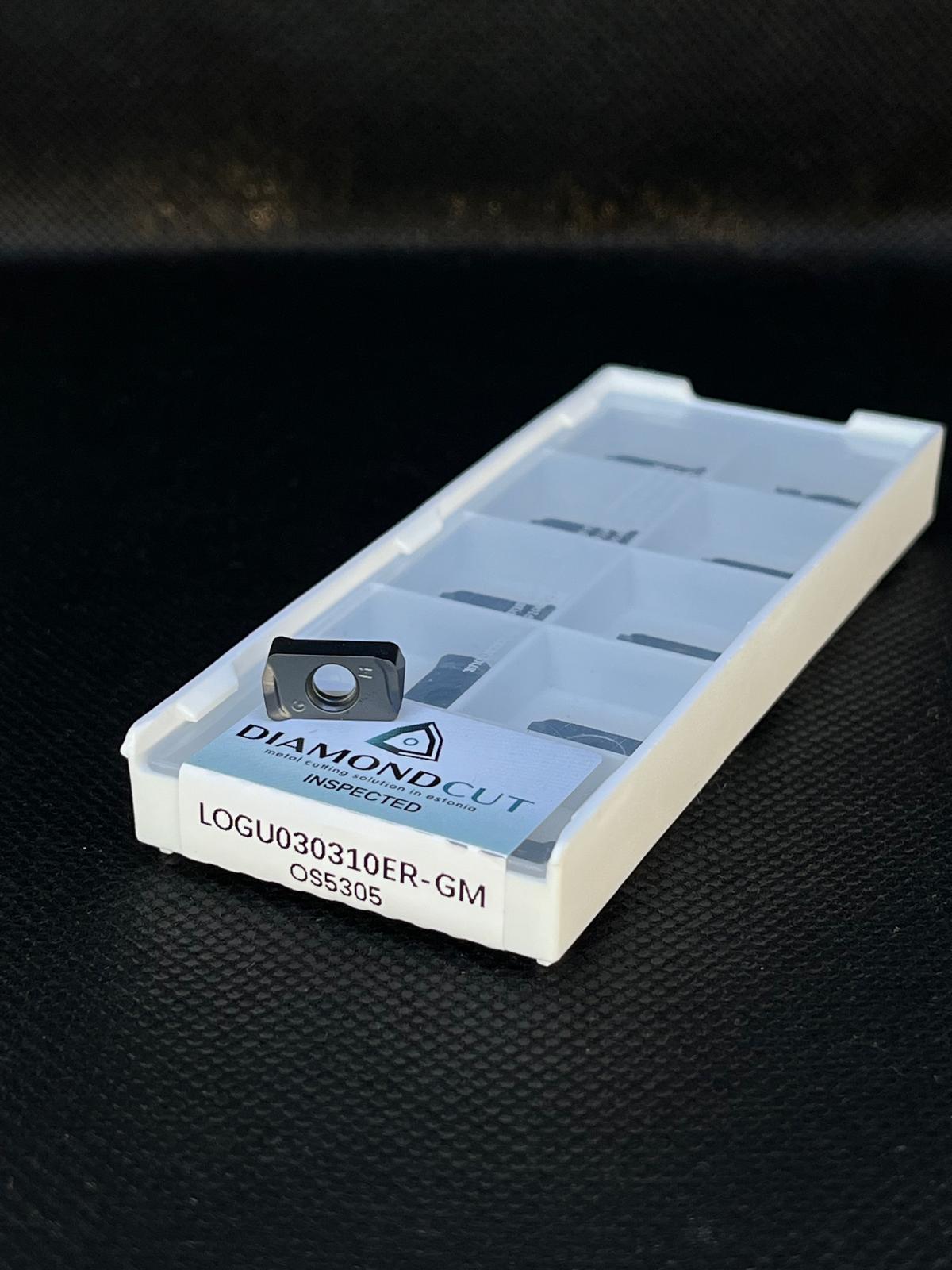

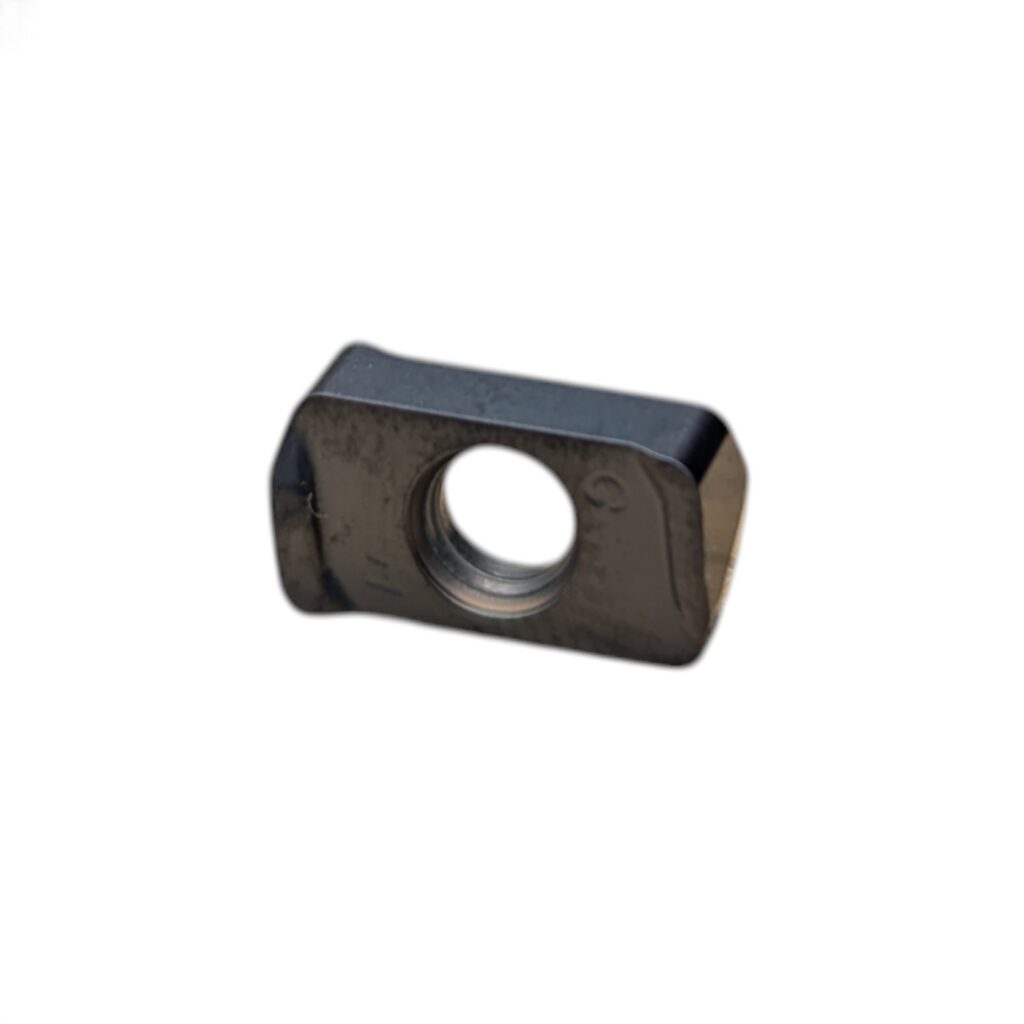

LOGU 030310ER-GM OS5305 Milling Inserts

The LOGU 030310ER-GM OS5305 Milling Inserts are high-performance carbide inserts developed for universal milling applications. With the OS5305 grade and a CVD coating, these inserts offer excellent wear resistance, thermal stability, and toughness. The fine-grain carbide substrate ensures strength and reduces the risk of edge chipping during demanding cutting conditions.

The GM chipbreaker geometry is designed to provide smooth cutting action, stable performance, and efficient chip evacuation. This makes the LOGU 030310ER-GM OS5305 Milling Inserts suitable for both roughing and semi-finishing operations. They are especially effective in steels (ISO P20–P40), stainless steels (ISO M20–M30), and cast irons (ISO K20–K30). The optimized geometry ensures reduced vibration, extended tool life, and improved surface finish, even under higher feed rates.

These inserts are commonly used in automotive, energy, and general machining industries where productivity and reliability are essential. With multiple cutting edges and a cost-efficient design, they provide excellent value for high-volume manufacturing environments.

Code Breakdown

• LOGU – Milling insert style

• 030310 – Insert size specification

• ER – Right-hand cutting edge

• GM – Universal chipbreaker geometry

• OS5305 – CVD-coated carbide grade for universal milling

Key Features of the Milling Insert

• Strong carbide substrate with improved durability

• CVD OS5305 coating for wear and heat resistance

• GM chipbreaker for reliable chip control

• Suitable for steels, stainless steels, and cast irons

• Excellent balance of toughness and productivity

Equivalent Milling Inserts from Other Brands

• Sandvik: R390-11T308M-PM 1030 (Sandvik official site)

• Seco: LOGU 030310ER-ME05 F40M

• Kennametal: KDMT 11T3-MP KCPK30

• Iscar: LOGU 030310ER-IC928

Recommended Cutting Data

• Cutting speed (steel): 180–280 m/min

• Cutting speed (stainless steel): 120–200 m/min

• Cutting speed (cast iron): 150–220 m/min

• Depth of cut: up to 3.0 mm

The LOGU 030310ER-GM OS5305 Milling Inserts provide a reliable solution for manufacturers seeking long tool life, consistent performance, and versatility. For more carbide milling inserts and turning solutions, visit our Diamond Cut store.
