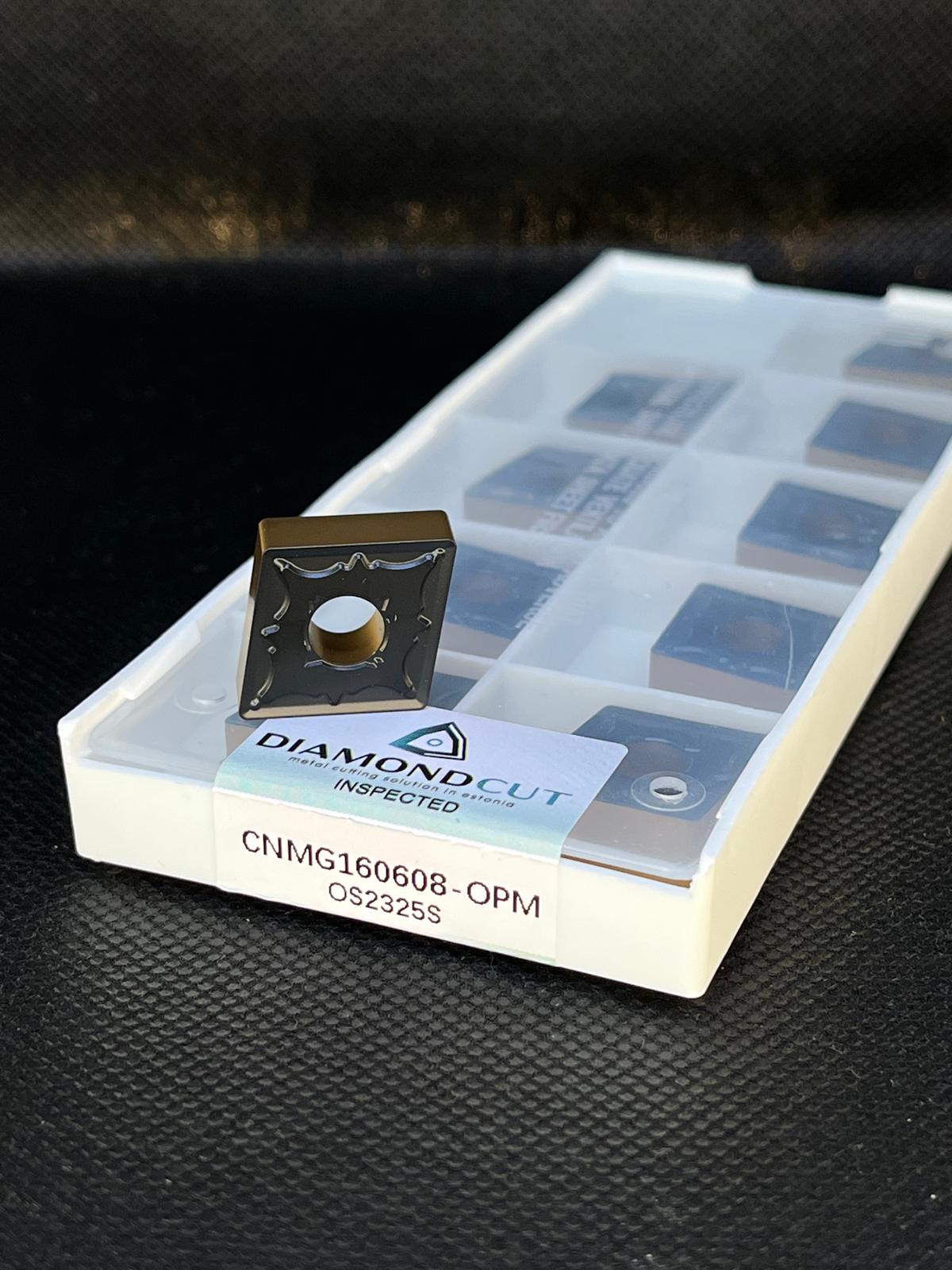

CNMG 160608-OPM OS2325S Carbide Turning Insert

The CNMG 160608-OPM OS2325S is a negative-style carbide turning insert designed for semi-finishing and finishing operations. With its 80° diamond shape (C-type) and double-sided geometry, it provides two cutting edges per side for cost efficiency and durability.

Manufactured in OS2325S grade, this insert features a CVD-coated carbide substrate optimized for wear resistance and toughness. It is suitable for machining steels and stainless steels, performing reliably in continuous and light interrupted cuts. The OPM chipbreaker ensures smooth chip control at medium to low feed rates, reducing heat and improving surface quality.

The 160608 designation means the insert has a 16 mm inscribed circle, 6.35 mm thickness, and an 8 mm cutting edge length, making it suitable for medium turning operations. Commonly used in automotive, machinery, and general engineering, this insert offers a balance of tool life, cutting efficiency, and surface precision.

Code Breakdown:

• C – Insert shape: 80° diamond

• N – Relief angle: 0° (negative insert)

• M – Tolerance class: medium

• G – Hole with chipbreaker

• 160608 – Size: 16 mm IC, 6.35 mm thickness, 8 mm cutting edge length

• OPM – Chipbreaker for finishing/semi-finishing stainless steels

• OS2325S – CVD-coated grade for steels and stainless steels

Key Features:

• CNMG 80° diamond-shaped carbide insert

• Sulam OS2325S with CVD coating

• Best for steels and stainless steels

• Cutting edge length: 8 mm

• Double-sided insert for cost efficiency

• OPM chipbreaker for smooth chip evacuation

• Excellent for finishing and semi-finishing

Equivalent Inserts:

• Sandvik: CNMG 160608-PM 2025

• Iscar: CNMG 160608-TF IC8150

• Mitsubishi: CNMG160608-MA US735

Compatible Tool Holders:

• MCN and PCN style holders

• MCLNR / MCLNL

• PCBNR / PCBNL

• Other 80° negative turning holders
