WXGU040304-TU P6522 Prospect

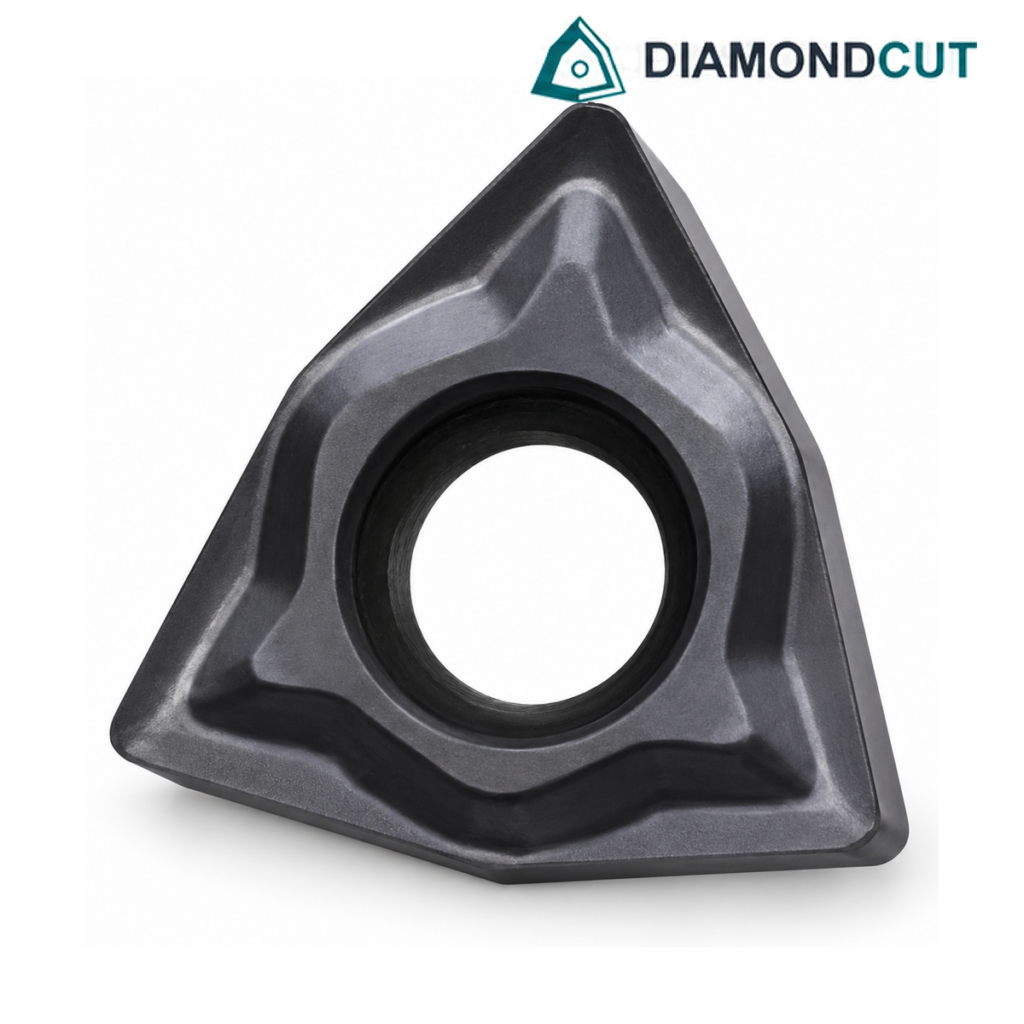

WXGU040304-TU P6522 Turning Insert (Prospect line)

Description:
The WXGU040304-TU P6522 is a high-performance 80° trigon turning insert, designed specifically for machining cast iron. Crafted from tungsten carbide, it features a trigon shape W with a tight included angle of 80°, a cutting-edge length of 4.00 mm, and a thickness of 3.04 mm. This insert offers superior wear resistance and excellent chip control in tough turning operations.

Key Specifications:

• Shape: 80° trigon (WXGU series)

• Size Code: 040304 — 4.00 mm cutting edge length, 3.04 mm thickness

• Grade / Designation: TU, optimized for cast iron (Prospect P6522)

• Material: Tungsten carbide – high hardness and wear resistance

• Application Sector: Casting and cast iron turning operations

• Key Attributes: Strong edge, stable chip evacuation, optimized for intermittent cuts in cast iron

• Compatible Holders : SWUNR04
