U-Drill D36mm 3xD - WCGX/WCMX

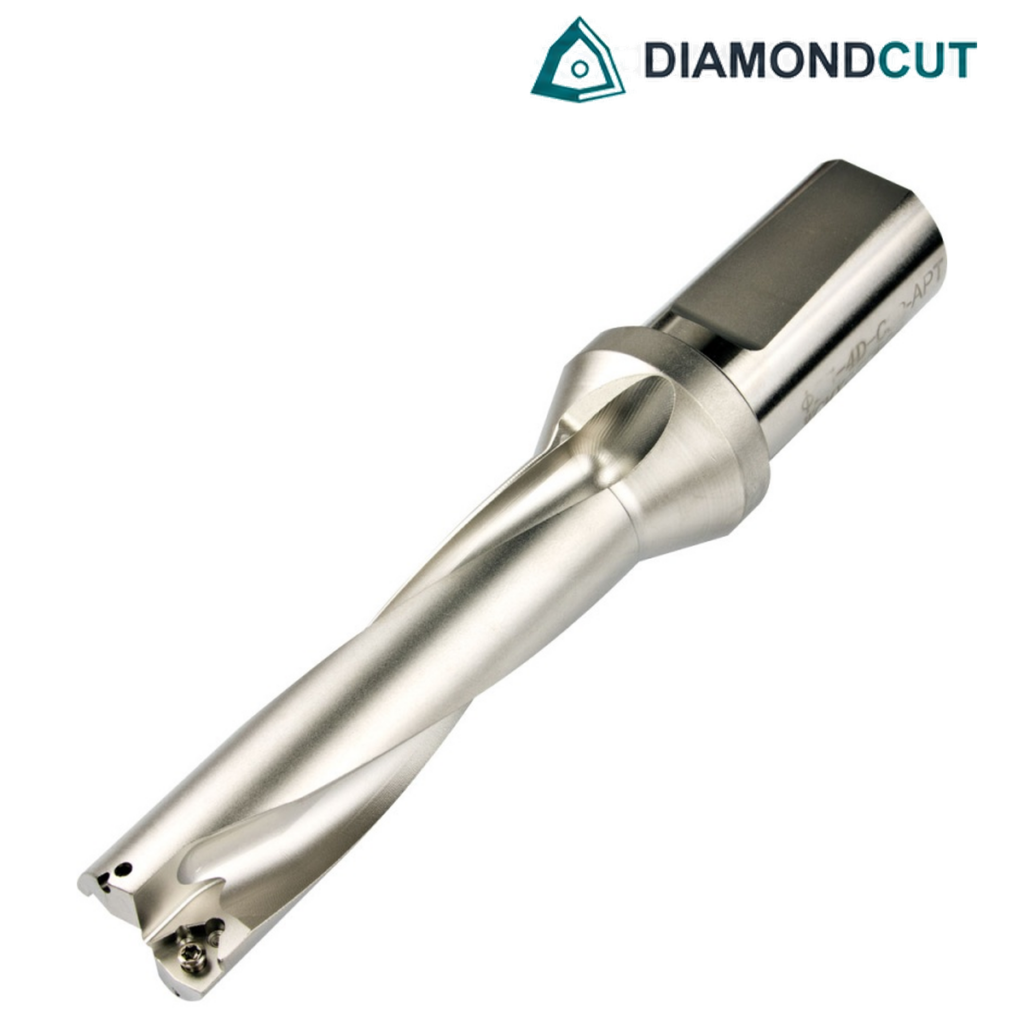

U-Drill Ø36 mm, 3×D with WCGX/WCMX Inserts

Description:
The U-Drill Ø36 mm 3×D is a high-performance indexable drilling tool designed for efficient and precise hole-making. It uses WCGX/WCMX carbide inserts, providing strong cutting edges, reliable chip evacuation, and long tool life. With a drilling depth capacity of 3×D (approx. 108 mm), this drill is ideal for medium-depth holes in steel, stainless steel, cast iron, and non-ferrous alloys.

Code Explanation:

• D36 mm – Drill diameter: 36 mm

• 3×D – Drilling depth, three times the diameter (~108 mm)

• WCGX/WCMX – Compatible positive/negative inserts for various materials

Key Features:

• Diameter: 36 mm

• Drilling Depth: 3×D (~108 mm)

• Insert Compatibility: WCGX and WCMX series carbide inserts

• Application: CNC drilling, rough and semi-finish hole-making

• Material: Hardened alloy steel body with precision ground pockets

• Coolant Supply: Internal coolant channels for efficient chip evacuation

• Benefits: High productivity, stable cutting, reduced vibrations, versatile insert options
