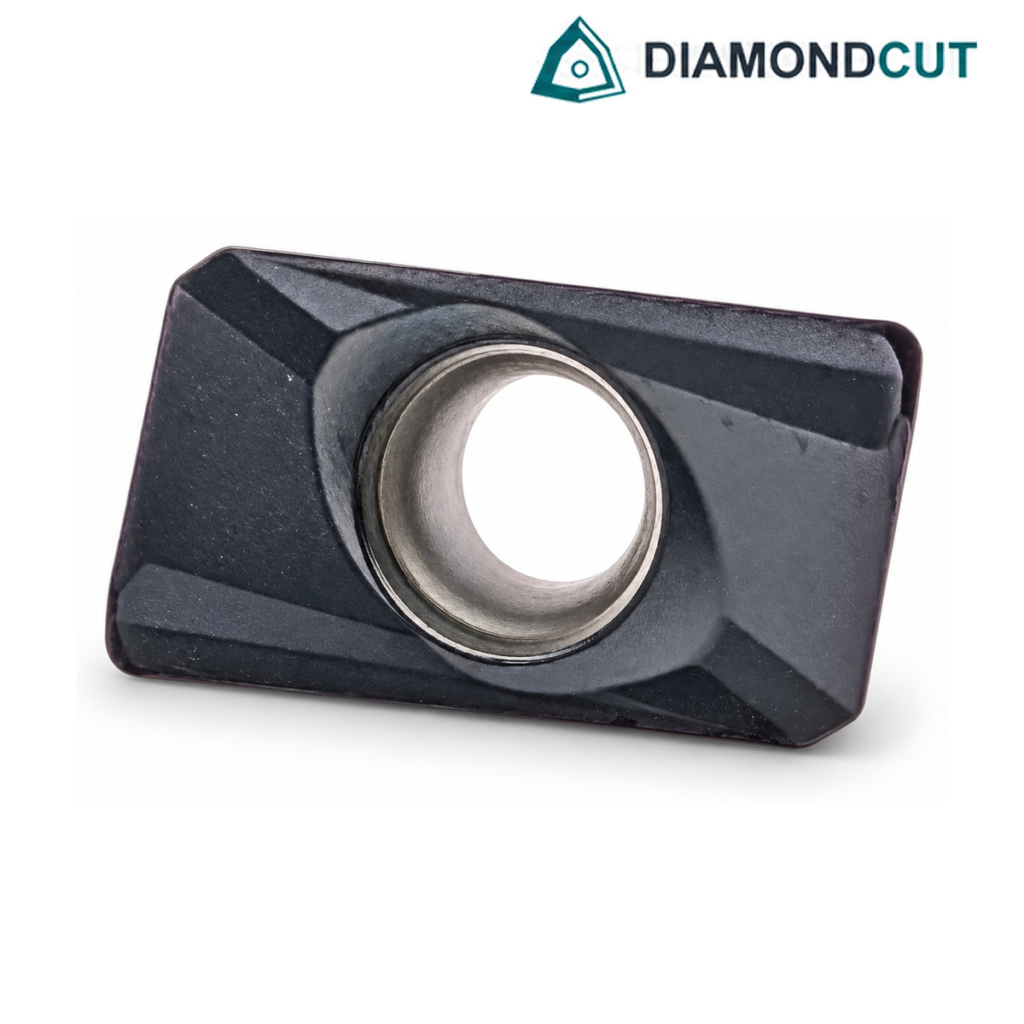

APMT 1604PDER-H2 OS5305 Carbide Milling Insert

The APMT 1604PDER-H2 OS5305 is a high-quality carbide milling insert designed for versatile face and shoulder milling applications. With its APMT geometry, the insert provides positive cutting action, low cutting forces, and efficient chip evacuation, making it suitable for a wide range of milling operations including slotting, ramping, and profiling.

Manufactured in OS5305 grade, this insert features a fine-grained carbide substrate with a PVD coating that offers a strong balance of wear resistance and toughness. It performs well on steels, stainless steels, and cast irons under light to medium cutting conditions. The H2 chipbreaker enhances stability and chip control, improving surface finish and extending tool life.

The 1604PDER designation corresponds to a 16 mm insert length, 4 mm thickness, and a positive geometry with 11° relief angle, making it compatible with a wide range of milling cutters. Widely used in automotive, mold-making, and general engineering, this insert delivers consistent and reliable performance.

Code Breakdown:

• A – Insert shape: 85° parallelogram

• P – Relief angle: 11° positive

• M – Tolerance class: medium

• T – Insert with fixing hole

• 1604 – Size: 16 mm length, 4 mm thickness

• PDER – Geometry with positive cutting edges, right-hand

• H2 – Chipbreaker for stable milling and chip evacuation

• OS5305 – PVD grade for steels, stainless steels, and cast irons

Key Features:

• Carbide milling insert for face and shoulder milling

• Sulam OS5305 with PVD coating

• Suitable for steels, stainless steels, and cast irons

• Size: 16×4 mm, positive cutting geometry

• H2 chipbreaker for stable cutting and improved surface finish

• Excellent chip evacuation and reduced cutting forces

• Reliable performance in slotting, ramping, and profiling

Equivalent Inserts:

• Sandvik: APMT 1604PDER-M 1040

• Iscar: APKT 1604PDR IC830

• Mitsubishi: APMT1604PDER MP9130

Compatible Tool Holders:

• Face milling cutters and end mills designed for APMT 1604 inserts
